1. Basic informations:

1) Feeding material information:

a. E-waste material

b. Capacity: 3-5 TPH

c. Status: baled or loose

2) Land information:

L*W*H (around 100-150m*20-30m*8-12m)

With roof

3) Power requirement

Shredding system around 300 kW

Sorting system around 200 kW

4) Main Equipment and its function

Pre-shredder (open the baler)

Hammer mill shredder(size reduction)

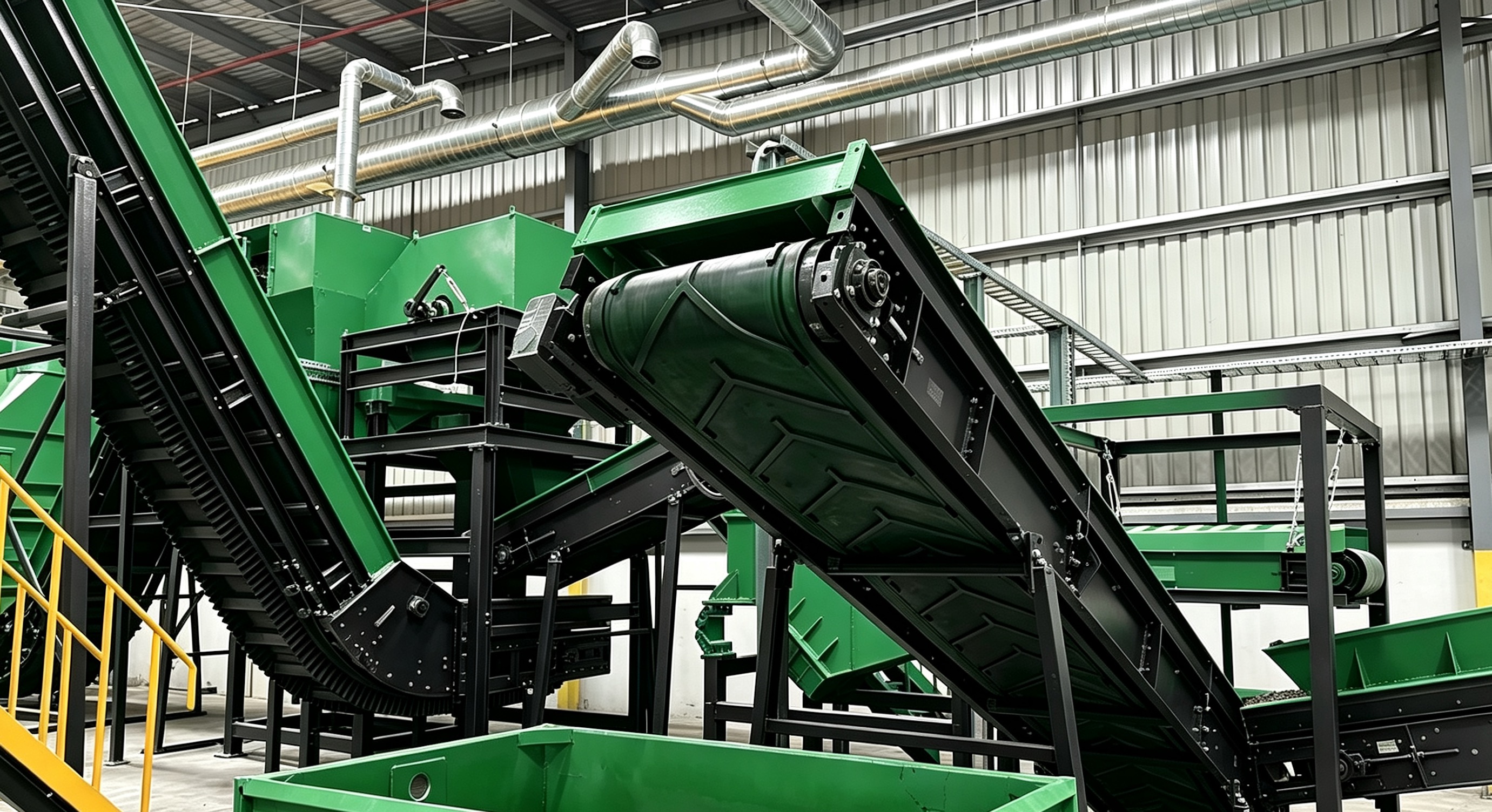

Drum magnetic separator(remove ferrous metal)

Zig zag Air separator(remove light materials like dust, sand,Aluminim powder)

Trommel screen(feeding material classified into 3 fractions per size)

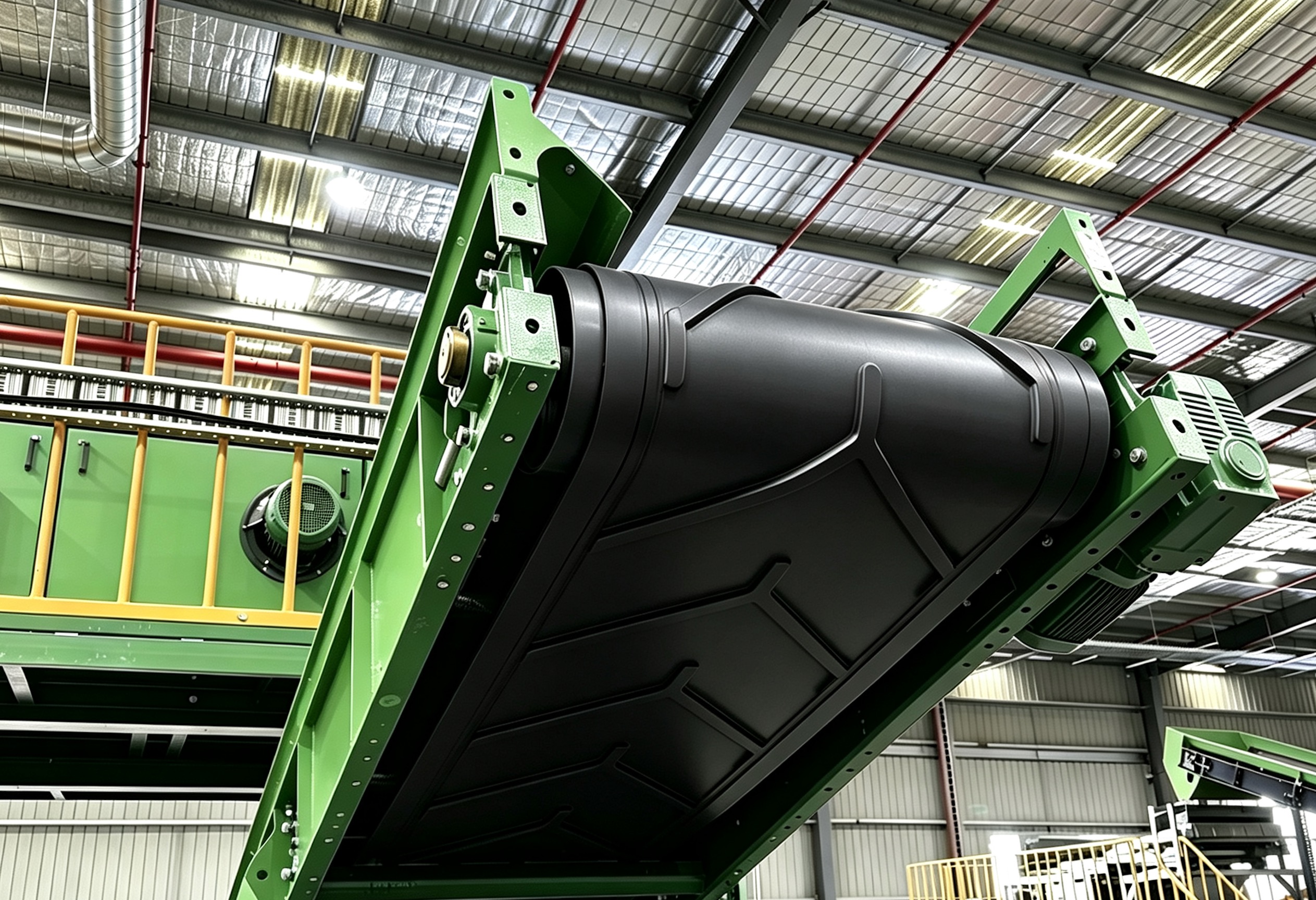

Eddy current separator(recovery Aluminium and remove contaminations like plastic, and rubber.)

X ray sorter(remove heavy metals and get clean Aluminium)

5) Special design

Whole plant with CE certificate

Hammer mill sound proof to reduce noisy

De-dusting system to keep the plant less dust pollution

Two stages Eddy current separator to get high non-ferrous metal recovery

Tower design to save the land cost
