1. Basic informations:

1) Feeding material information:

a. Aluminium scrap(Aluminum profile, wheels, aluminium sheets)

b. Capacity: 10-30 TPH

c. Status: baled or loose

2) Land information:

L*W*H (around 100-150m*20-30m*8-12m)

With roof

3) Power requirement

Shredding system around 200 kW-450KW

Sorting system around 200 kW

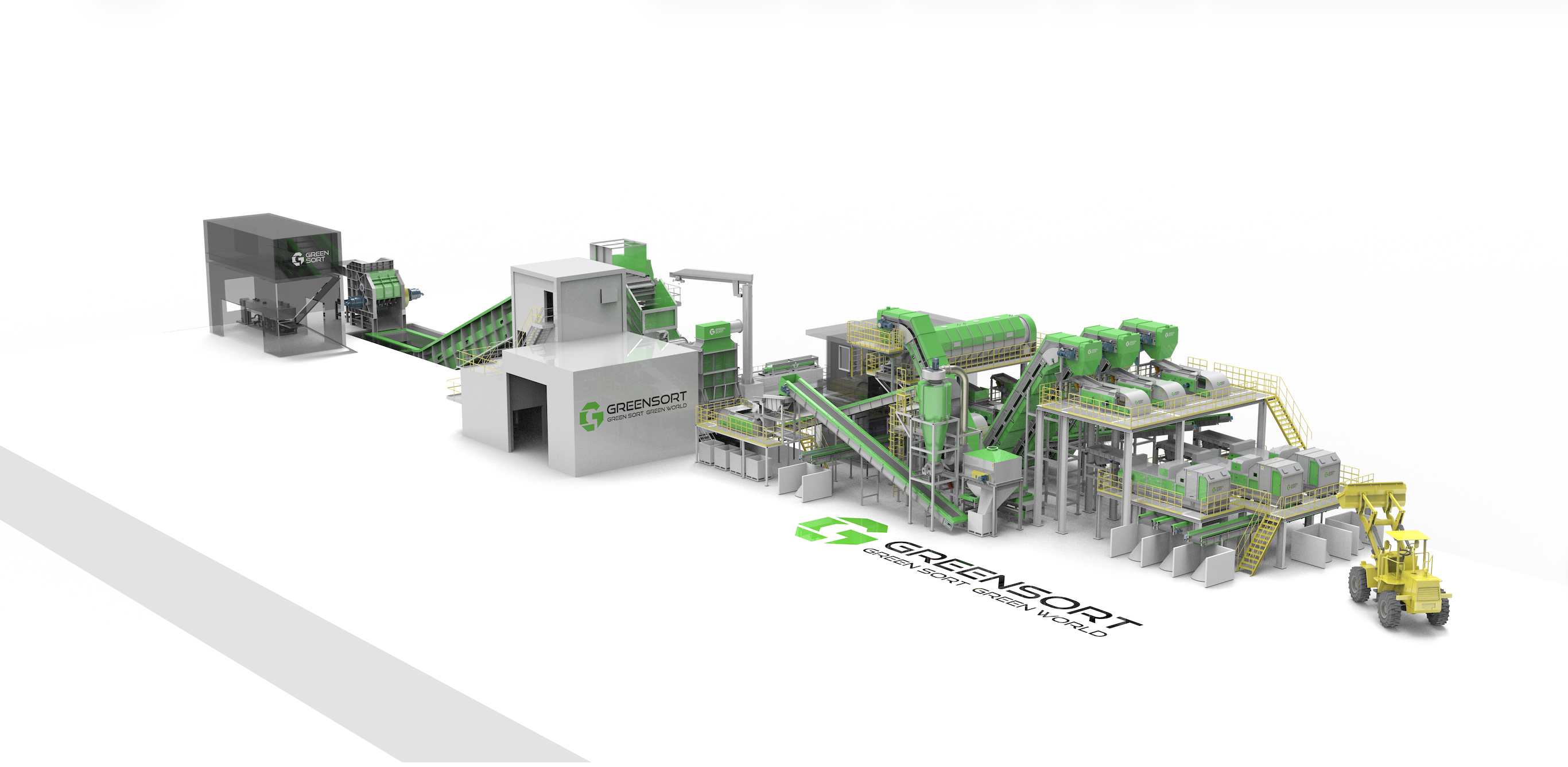

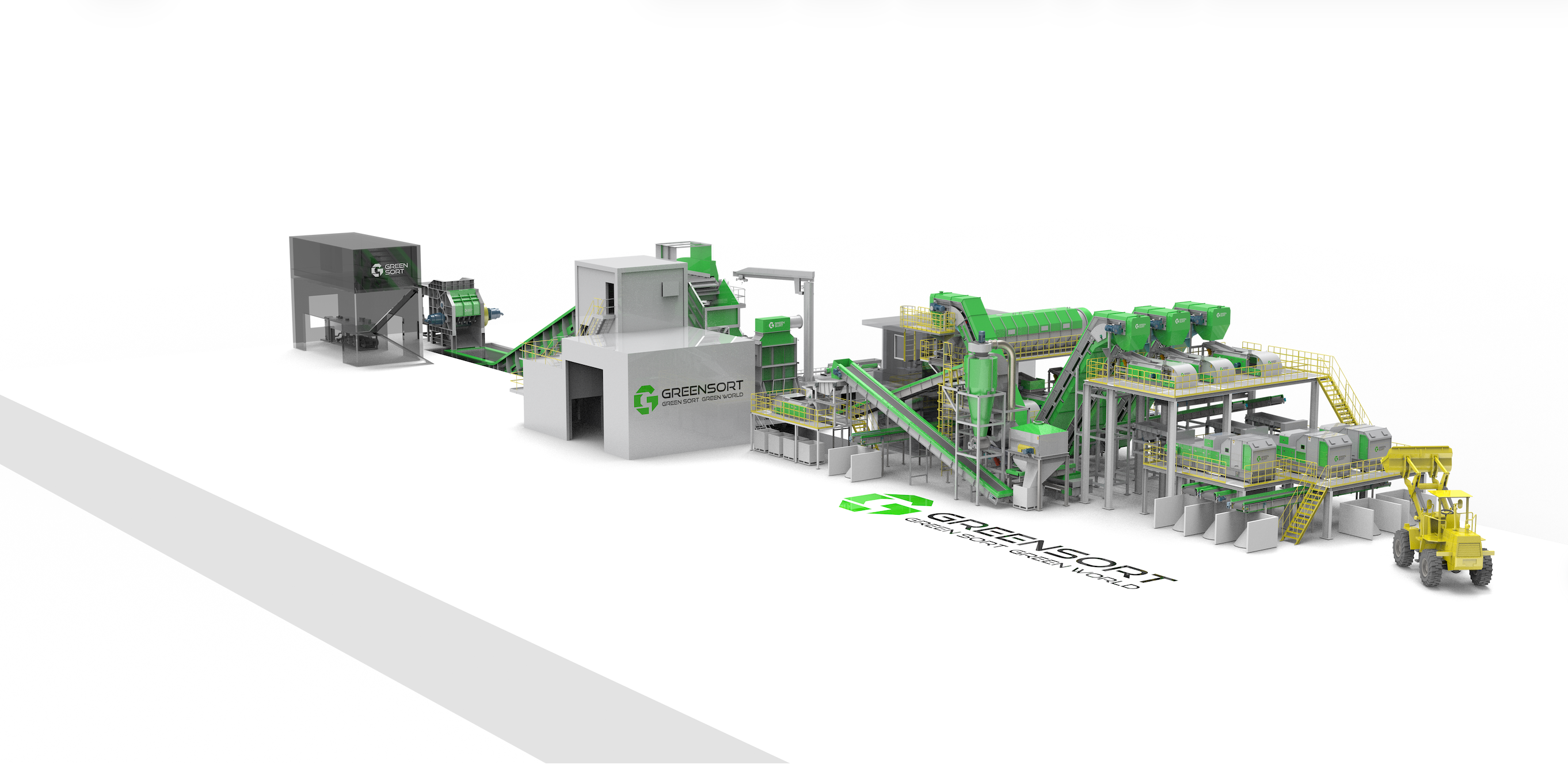

4) Main Equipment and its function

Pre-shredder also named Twin shaft shredder(open the baler)

Single shaft shredder(size reduction)

Drum magnetic separator(remove ferrous metal)

Zig zag Air separator(remove light materials like dust, sand,Aluminim powder)

Trommel screen(feeding material classified into 3 fractions per size)

Eddy current separator(recovery Aluminium and remove contaminations like plastic, and rubber.)

X ray sorter(remove heavy metals and get clean Aluminium)

5) Special design

Whole plant with CE certificate

Hammer mill sound proof to reduce noisy

De-dusting system to keep the plant less dust pollution

Two stages Eddy current separator to get high non-ferrous metal recovery

Tower design to save the land cost
