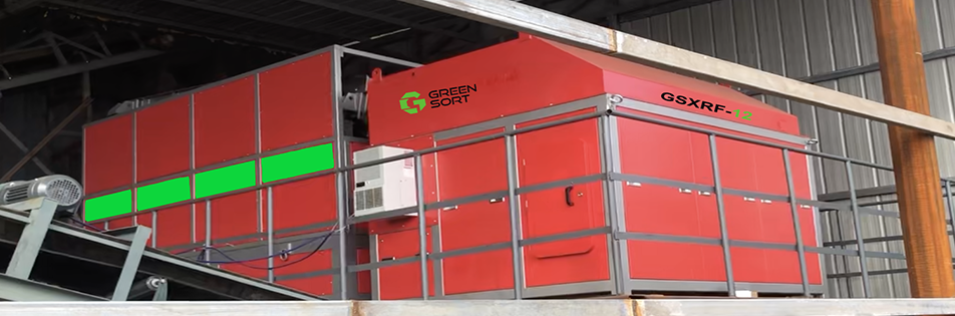

The X-ray sorter-GSXRF model Is a new generation of chute type optical sorting machine, specially developed for metal recovery. The advanced chute feeding device improves the sorting efficiency and accuracy of scrap metal. X-ray fluorescence was used to analyze the chemical composition of the material. Compared to other sorting techniques, moisture, color and surface contamination of the material do not have any negative impact on detection. The high sorting efficiency of the XRF X ray sorter results in higher value products. With the pre-set sorting program, different sorting steps can be carried out on the same device, so the technology has the characteristics of multi-purpose.

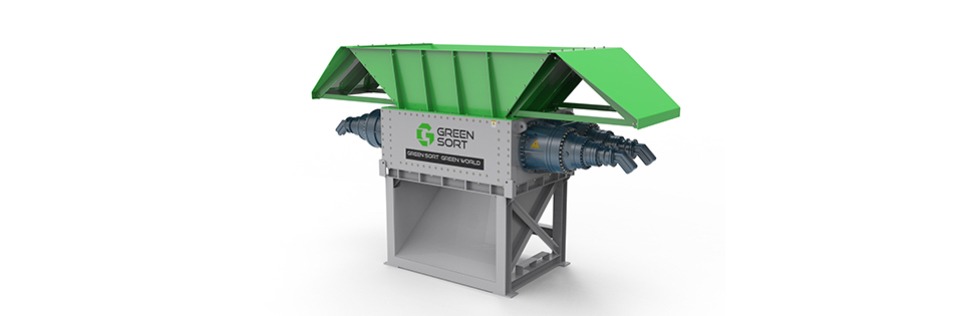

The pre-shredder is special focus on heavy metal scrap processing or AUTO body shredding, The high torque and Hard alloy cutter bring in high efficiency when it be used in pre-treatment of scrap metal. Our hydraulic pre shredder has been used in many ASR plant, like in Australia.

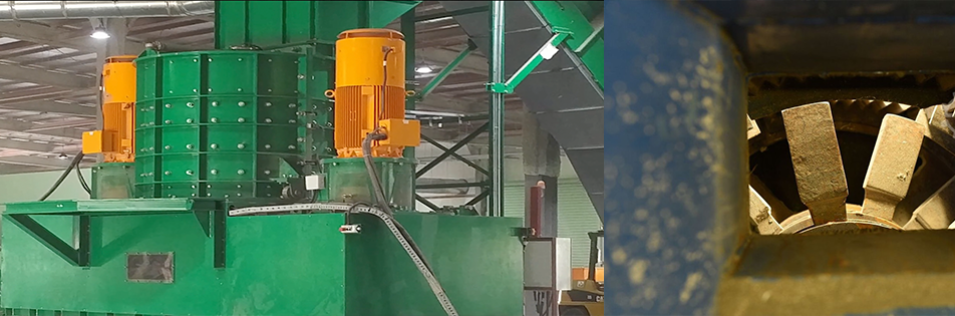

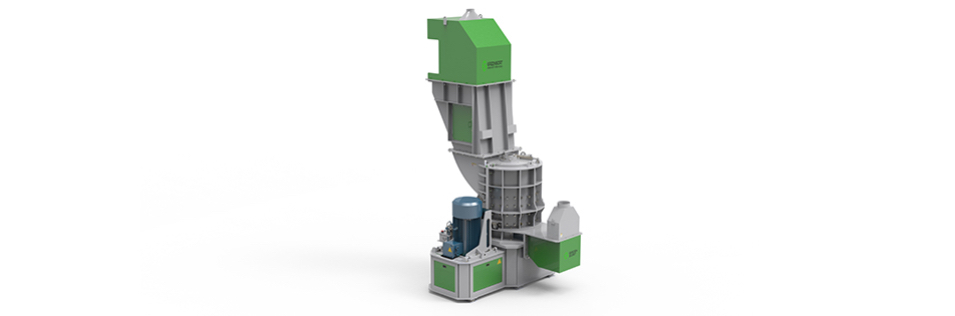

Hardening the material by crushing it against a wall using a rotor equipped with manganese steel star cams. Two to three reduction stages, with gradual densification of the product from one level to the next. Evacuation of unshreddable material via hydraulic exit door. Easier release of the various shredded components. Separation of lightweight sterile waste by ventilation. Regular and uniform output flow without risk of excess accumulation.

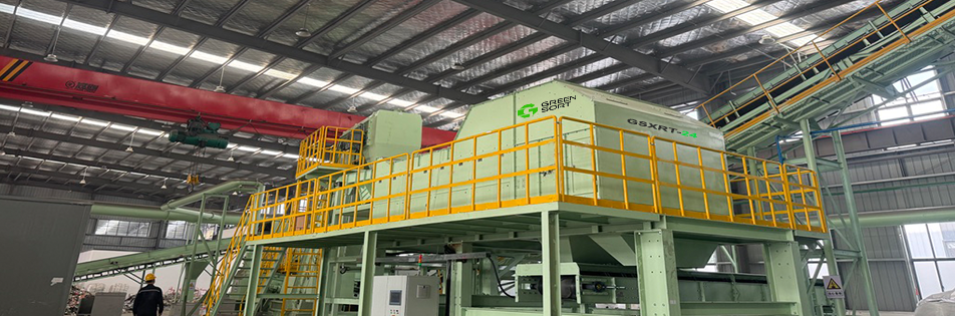

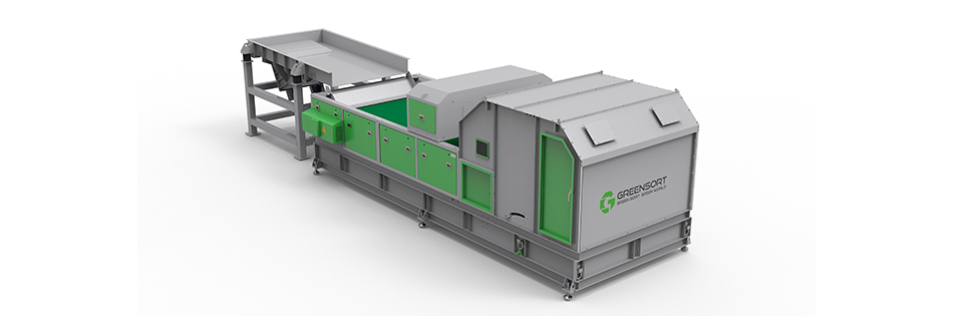

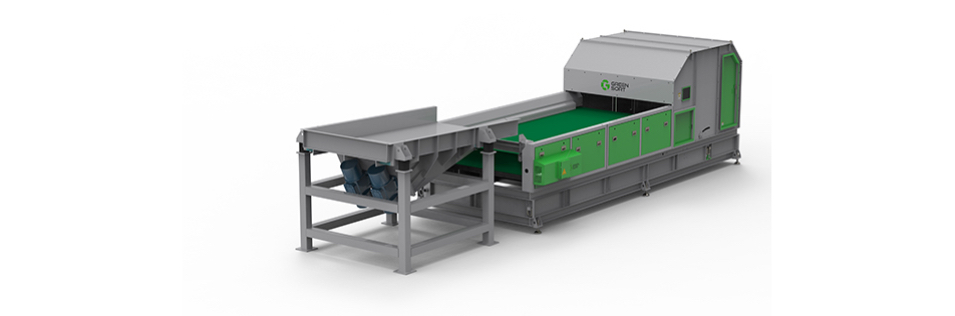

The X-ray sorter adopts a new generation of X-ray transmission technology, which adopts high dual-energy metal separation. Dual-energy sensors can recognize different metal materials regardless of thickness; It is mainly used to separate heavy metals and light metals from mixed metals, and is usually installed at post of the eddy current separator to recover the non-ferrous metals in the ECS residual material. X-Ray sorter is based on the detection of different materials by means of the atomic particle density. Heavy metals are shown dark and light metals or organic materials are shown brighter or indistinct in the original images from the XRT sensor. For the use of XRT technology for sorting recycle enabled aluminum, the machine software is created according to the findings of the processor so that certain material is displayed in specific colors. For example, choose light gray or white for aluminum, red for copper, yellow for brass, blue for zinc, green for stainless steel and black for lead. In this way, recognition and display for sorting is easily possible.

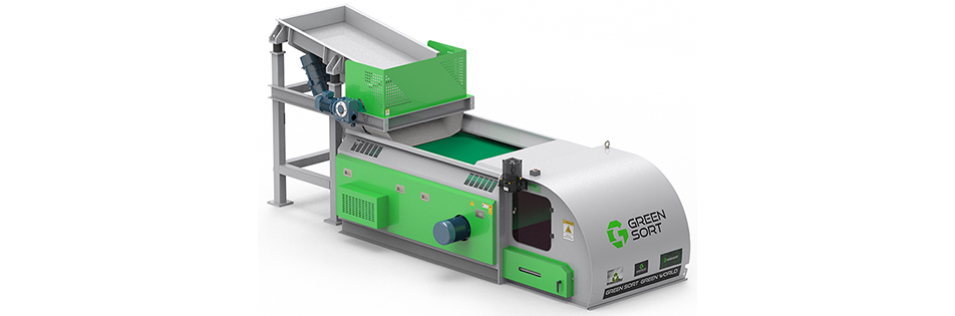

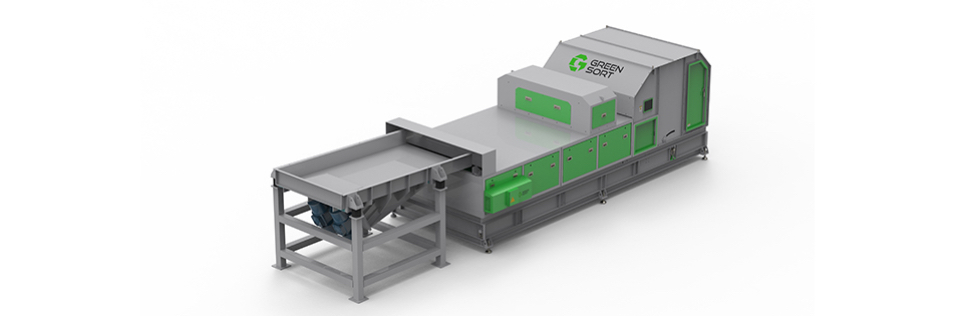

GSMSS Metal sensor sorter is the ideal sorting solution to recover non-ferrous metals lost to eddy current separation. The sorting unit harnesses the power of electromagnetic sensors and built-in machine intelligence to instantly detect metals, regardless of material complexity or grain size. Normally, After ECS(Eddy current separator) the residual material contain the copper wire, PCB, stainless steel etc. By Metal sensor sorter, the copper wire&PCB&stainless steel can be rejected into same bin or discharge conveyor. By second stage separation of Metal sensor sorter, the clean stainless steel can be sorted from the copper wire and PCB mixed material. The market proved technology and sorting machine already sold to many metal recycling plant for stainless steel and copper wire separation. Our modular and flexible design offers the optimal sorting solution metal and waste recycling. With belt speeds up to 2.5-3m/sec and reduced air consumption, Metal Sensor Sorter delivers your operation high yield results across various sorting tasks.

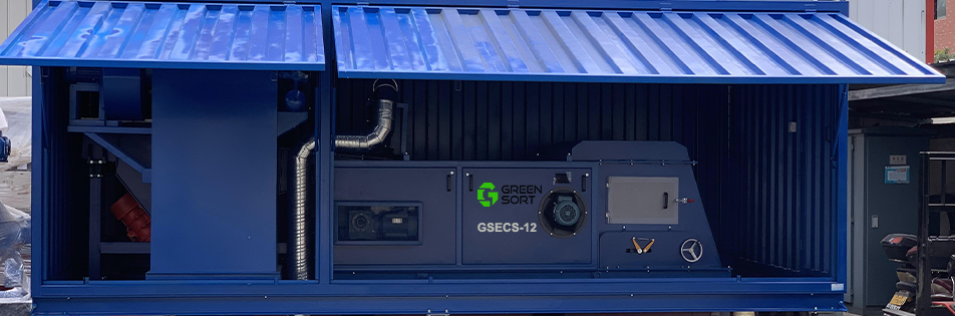

3.0 version Eccentric eddy current separator adopts the integrated design concept, with auto lubrication system and PLC smart system. Besides, Its magnetic rotor rotation speed can be up to 3000rpm, magnetic intensity with 4500Gs still are leading sorting technology.
