1. Basic informations:

1) Feeding material information:

   a. UBC(used beverage container)

   b. Capacity: 5-10 TPH

   c. Status: baled or loose

2) Land information:

   L*W*H (around 100-150m*20-30m*8-12m)

   With roof

3) Power requirement

    Shredding system around 300 kW

    Sorting system around 200 kW

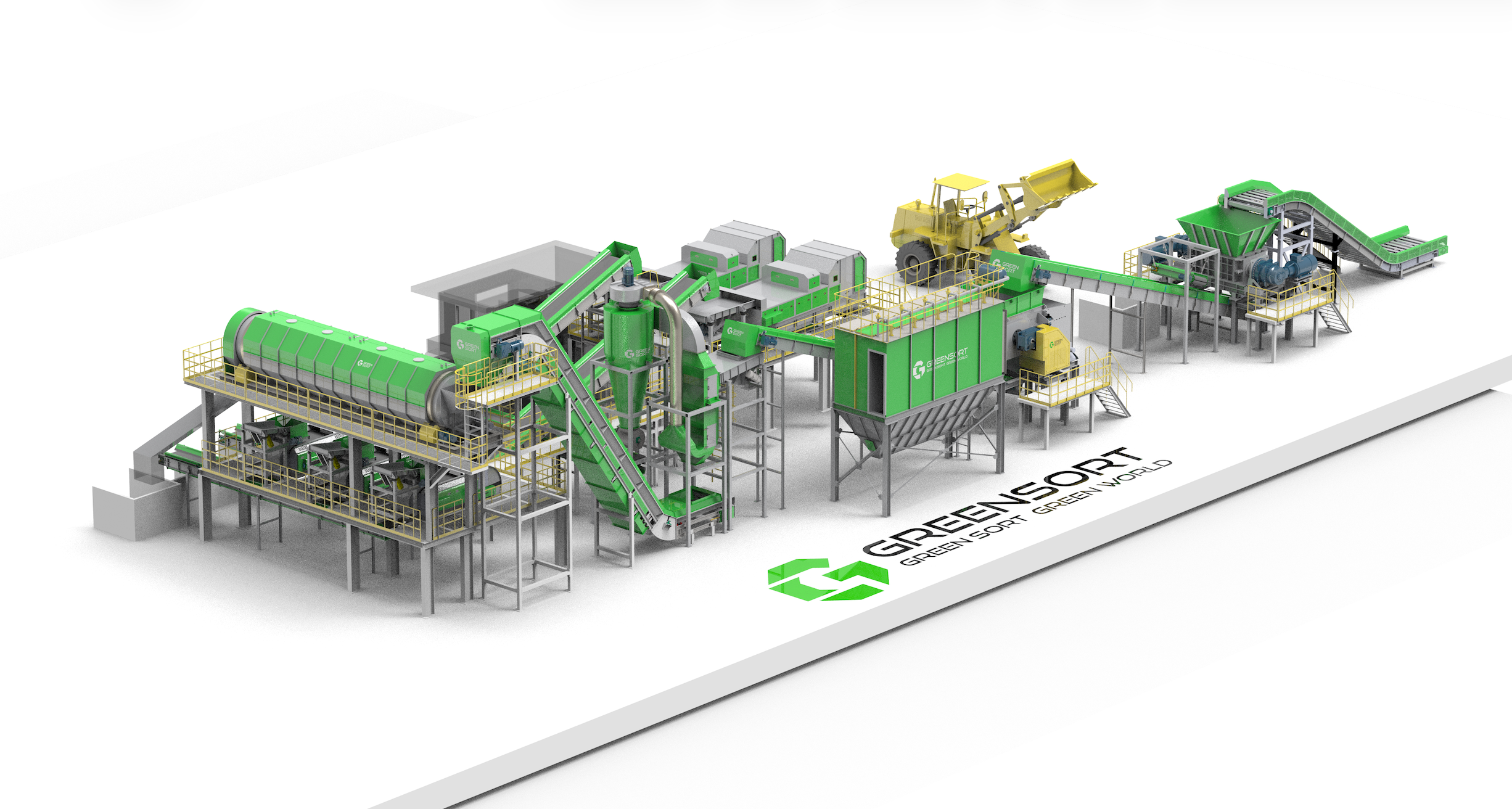

4) Main Equipment and its function

    Pre-shredder also named Twin shaft shredder(open the baler)

    Single shaft shredder(size reduction)

    Drum magnetic separator(remove ferrous metal)

   Zig zag Air separator(remove light materials like dust, sand,Aluminim powder)

   Trommel screen(feeding material classified into 3 fractions per size)

   Eddy current separator(recovery Aluminium and remove contaminations like     plastic, and rubber.)

   X ray sorter(remove heavy metals and get clean Aluminium)

5) Special design

  Whole plant with CE certificate

 Hammer mill sound proof to reduce noisy

 De-dusting system to keep the plant less dust pollution

 Two stages Eddy current separator to get high non-ferrous metal recovery

 Tower design to save the land cost
