1. Basic informations:
1) Feeding material information:
a. Scrap steel
b. Capacity: from 30 TPH to 100 TPH
c. Status: baled or loose
2) Land information:
L*W*H (around 100-150m*20-30m*8-12m)
With roof
3) Power requirement
Shredding system from 1200 HP- 10000HP
Sorting system around 200 kW

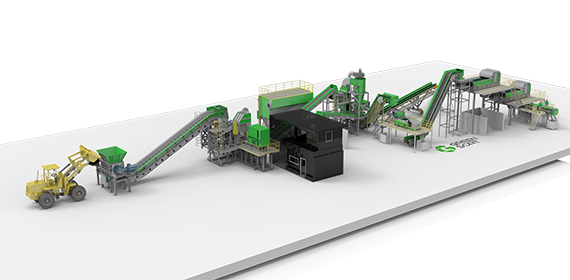

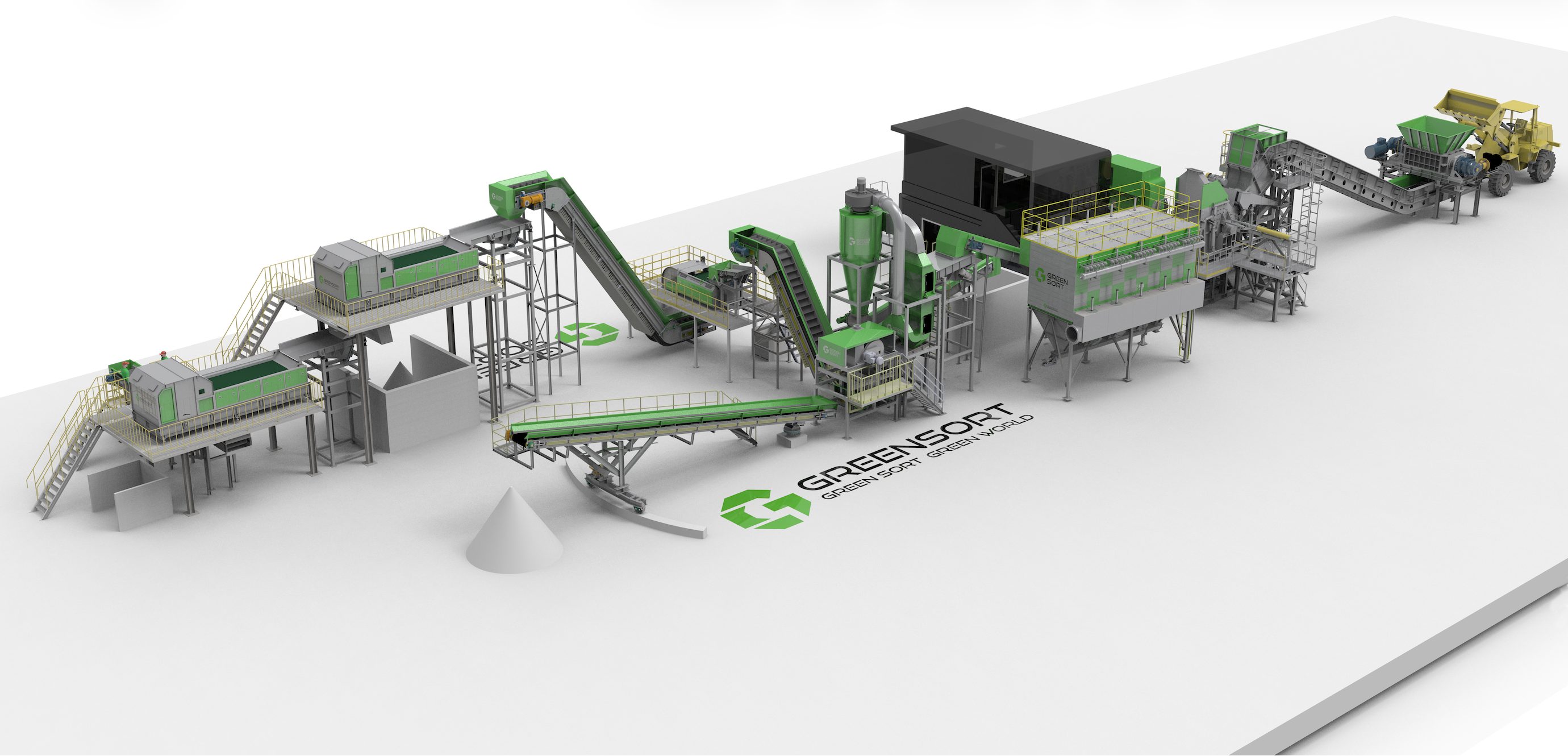

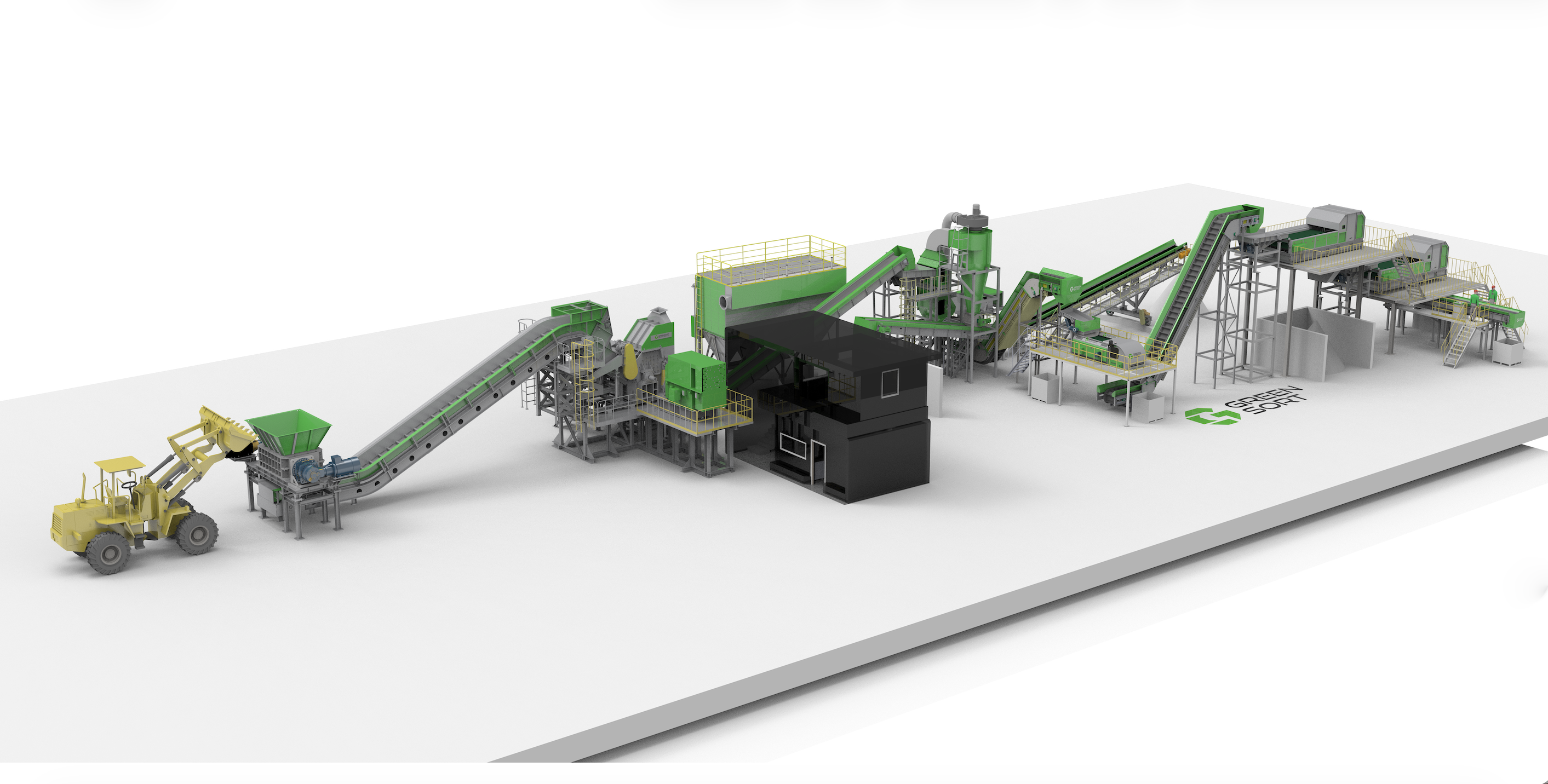

4) Main Equipment and its function
Pre-shredder or named Twin shaft shredder(Tear the baler or big item)
Hammer mill shredder(size reduction)

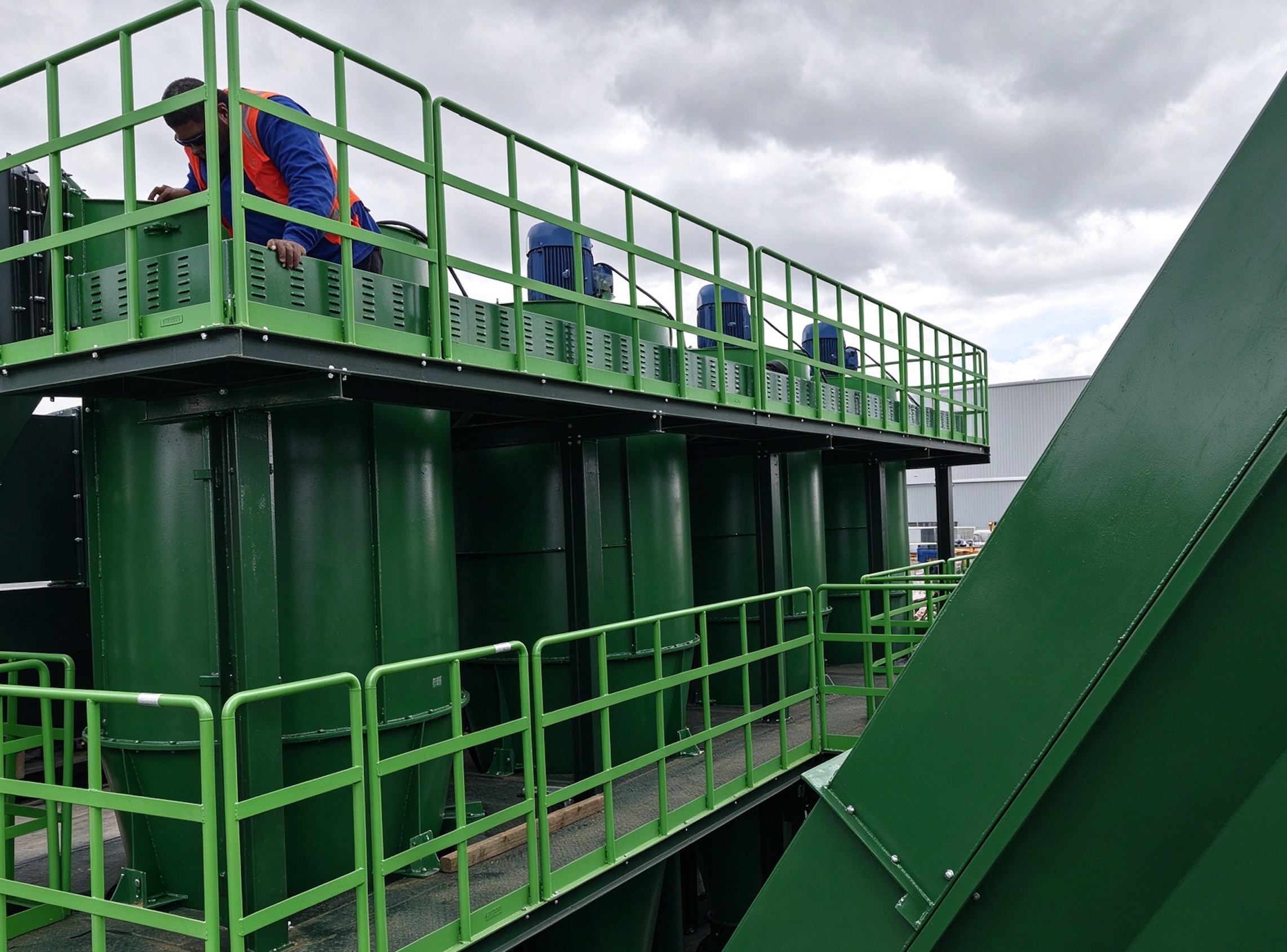

Zig zag Air separator(remove light materials like dust, sand,Aluminim powder)
Drum magnetic separator(recovery ferrous metal)
Eddy current separator(recovery Aluminium and remove contaminations like plastic, and rubber.)
Metal sensor sorter(recovery stainless steel, wire and pcb board)
Metal sensor sorter(recovery stainless steel)
5) Special design
Whole plant with CE certificate
Hammer mill sound proof to reduce noisy
De-dusting system to keep the plant less dust pollution
Two stages metal sensor sorter to get high purity stainless steel recovery
Reference:
Spain market scrap steel shredding&sorting plant.
1) Feeding material- Scrap steel

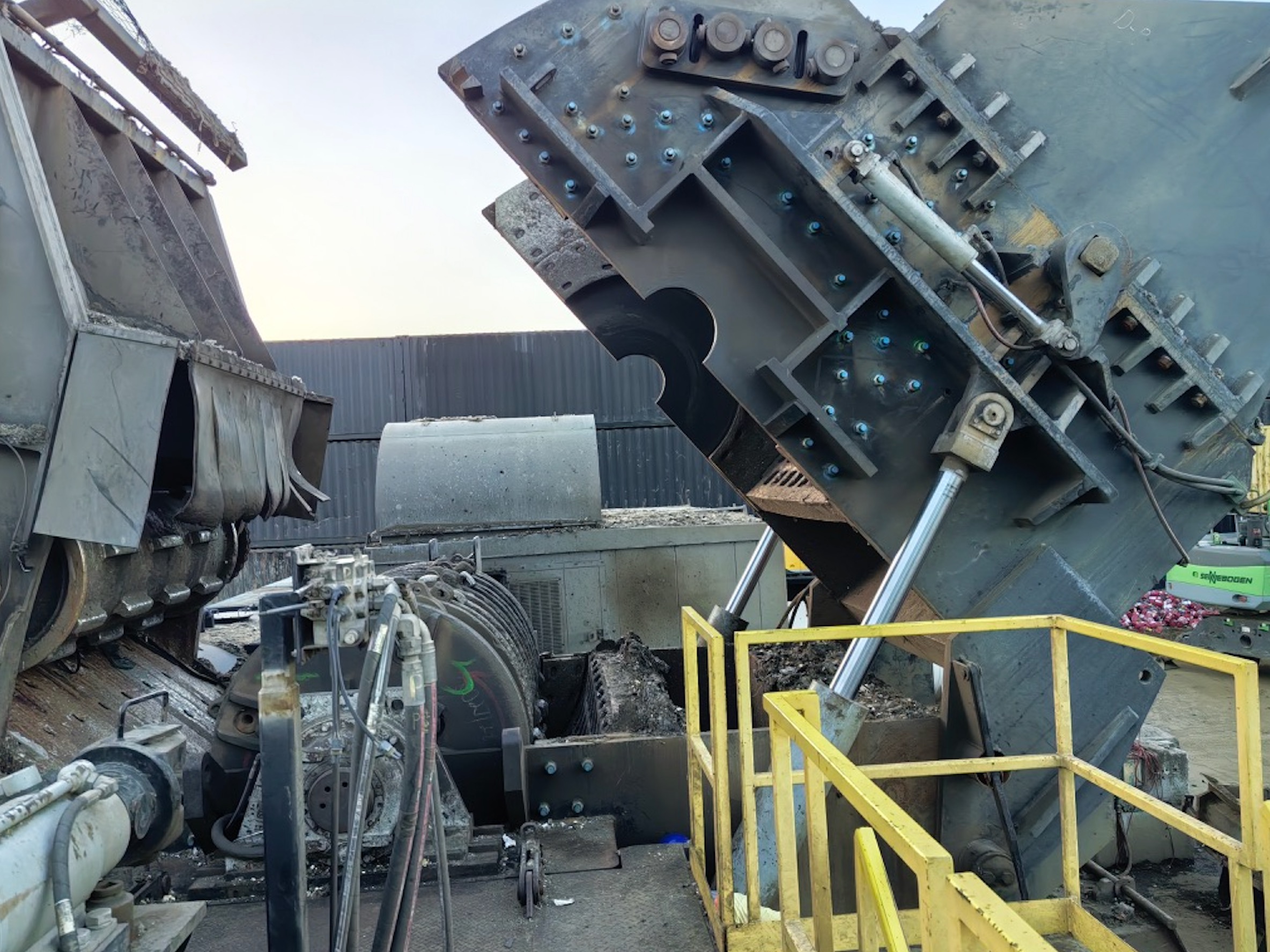

2) Hammer Mill Shredder:
3) Feeding ASR material

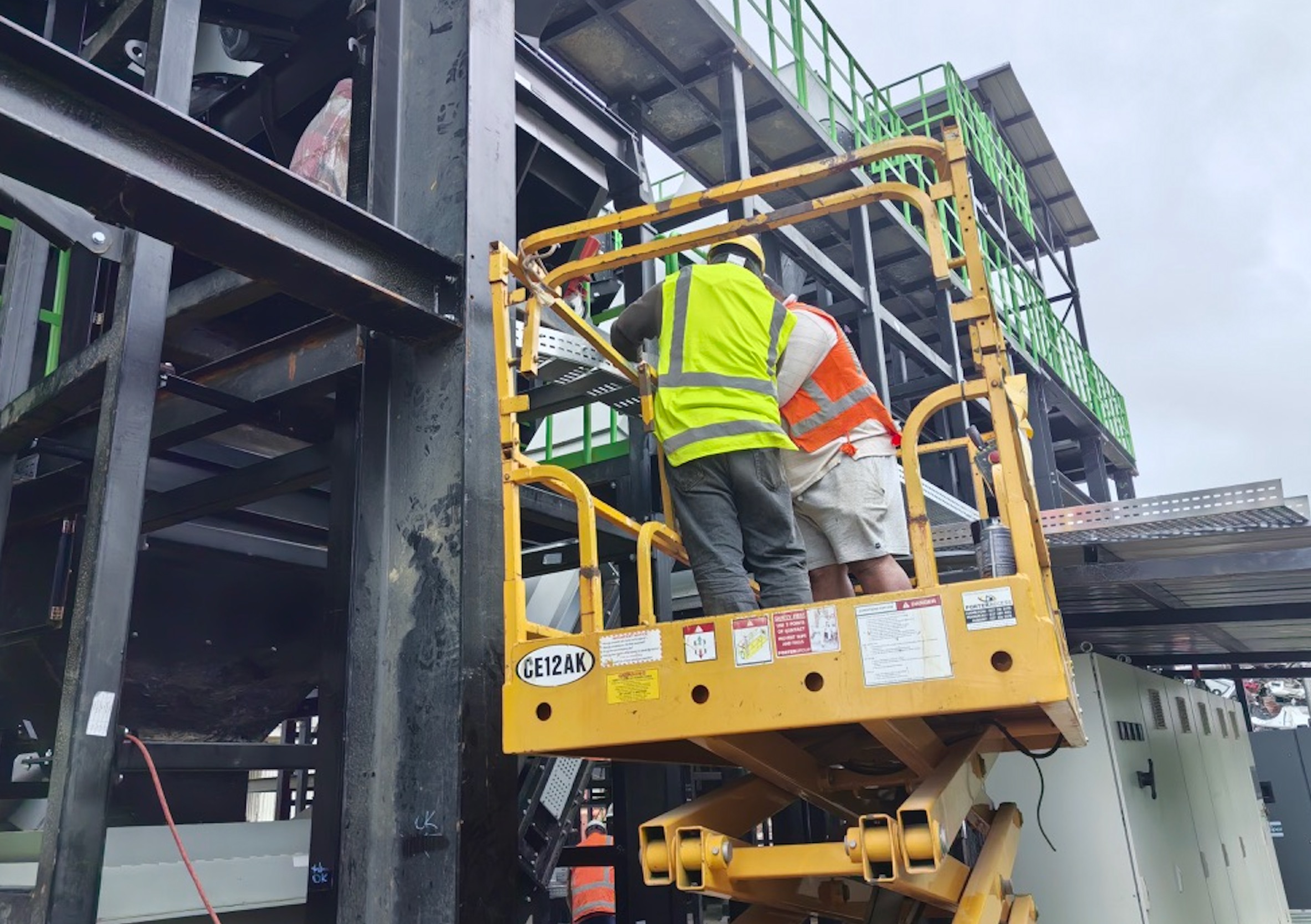

4) ASR sorting plant Feeding system
5) Trommel screen system

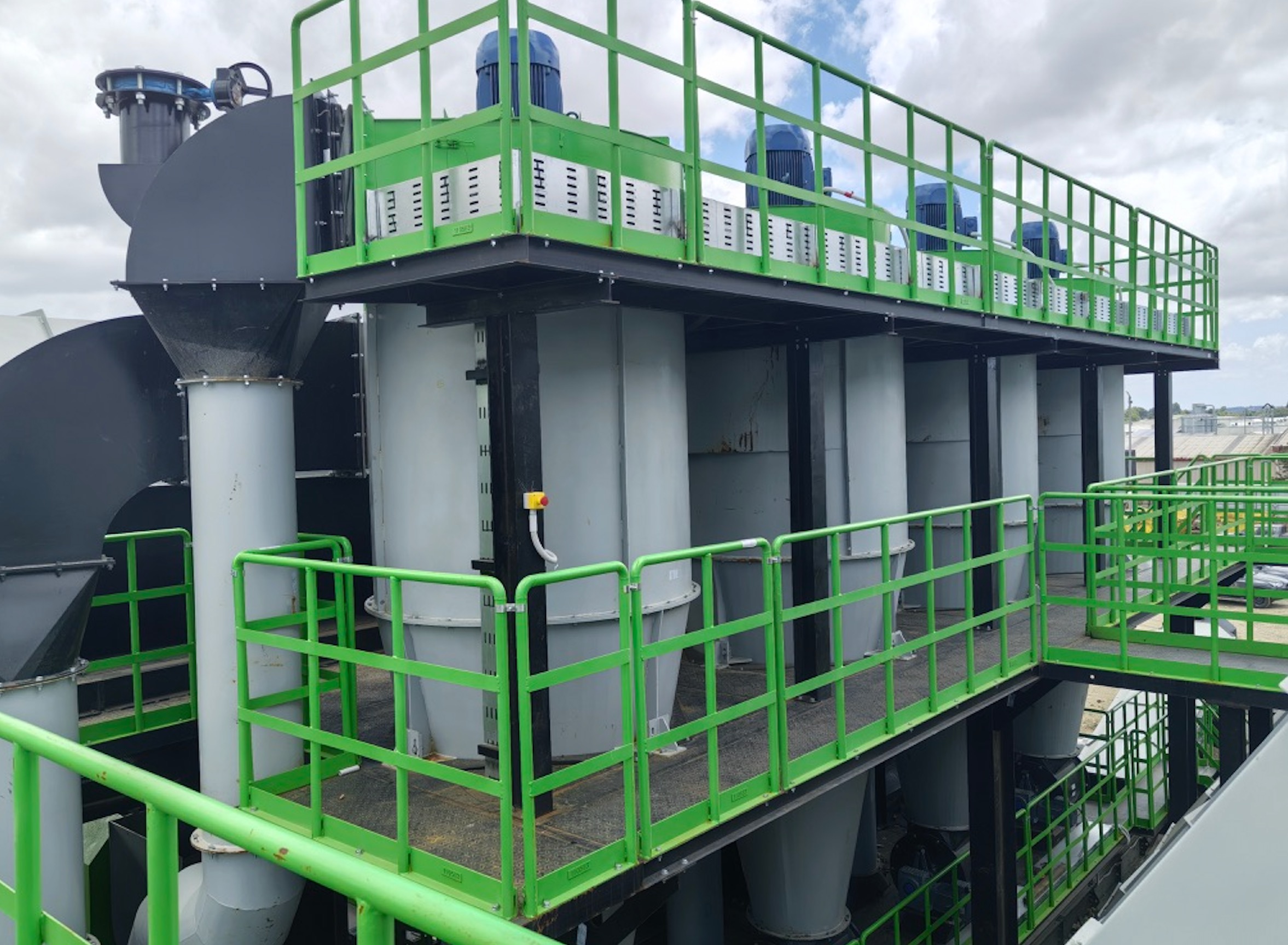

6)ASR sorting plant air separator system

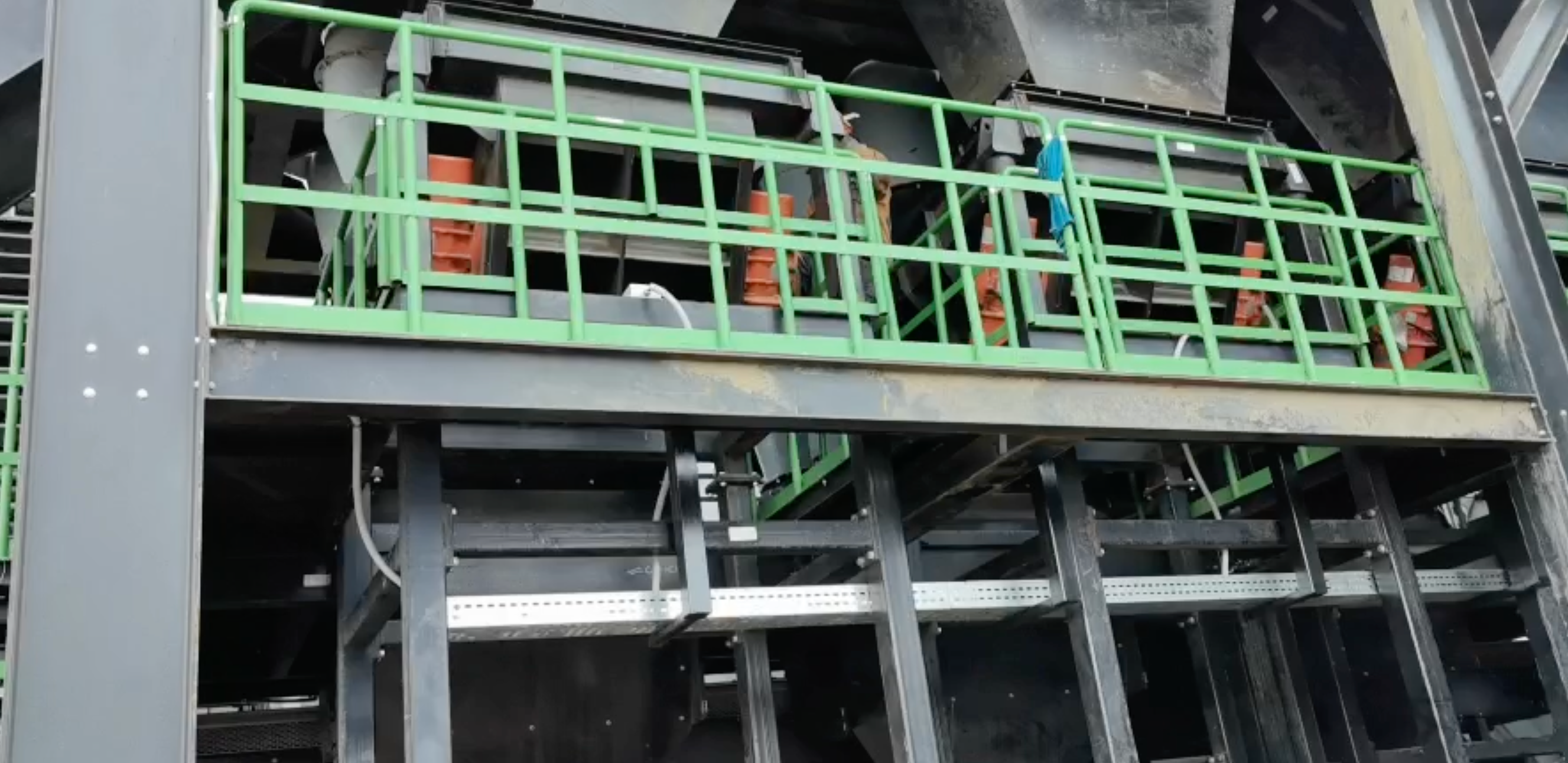

7) ASR sorting plant Eddy current separator system

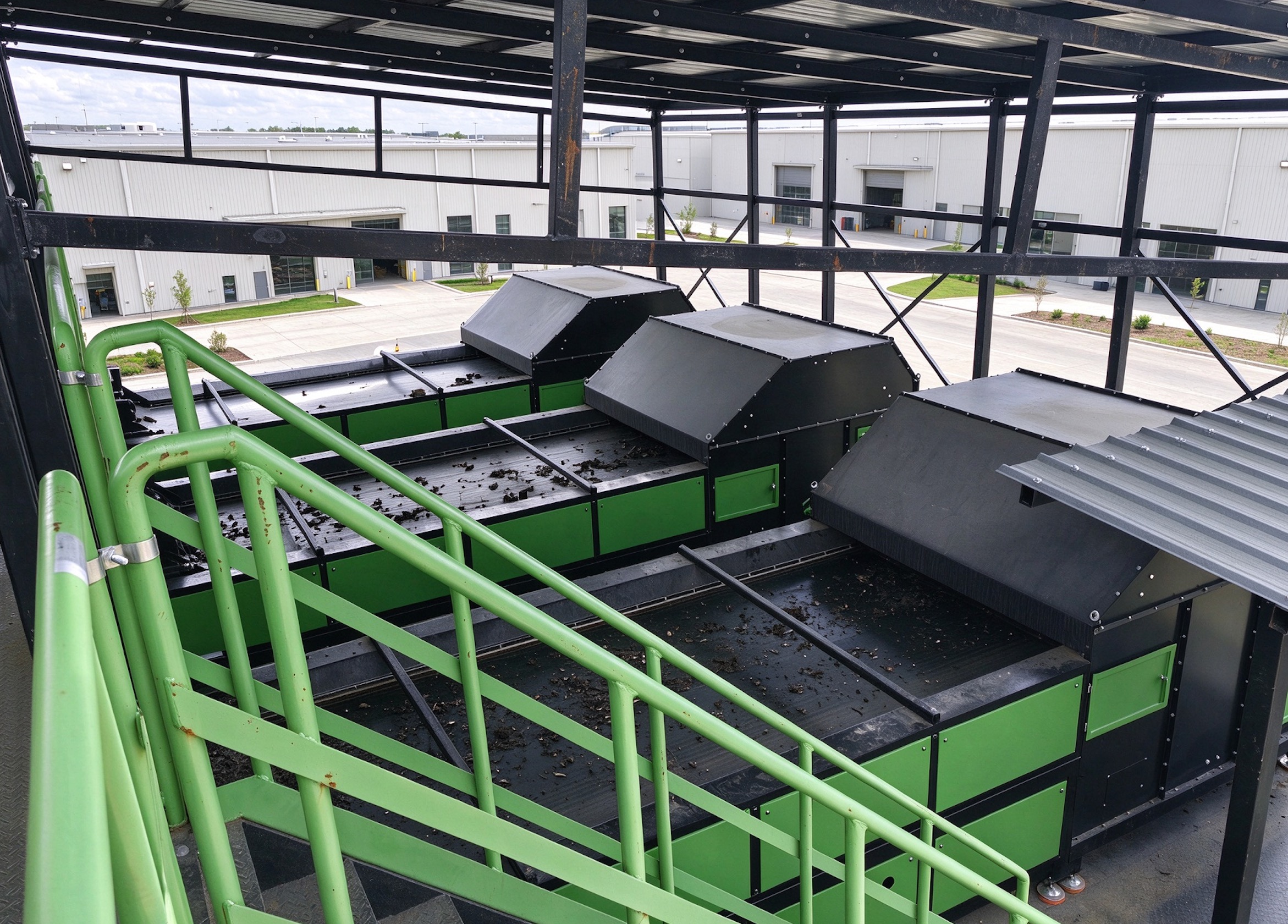

8) Metal sensor sorter system
9)Final Zorba product

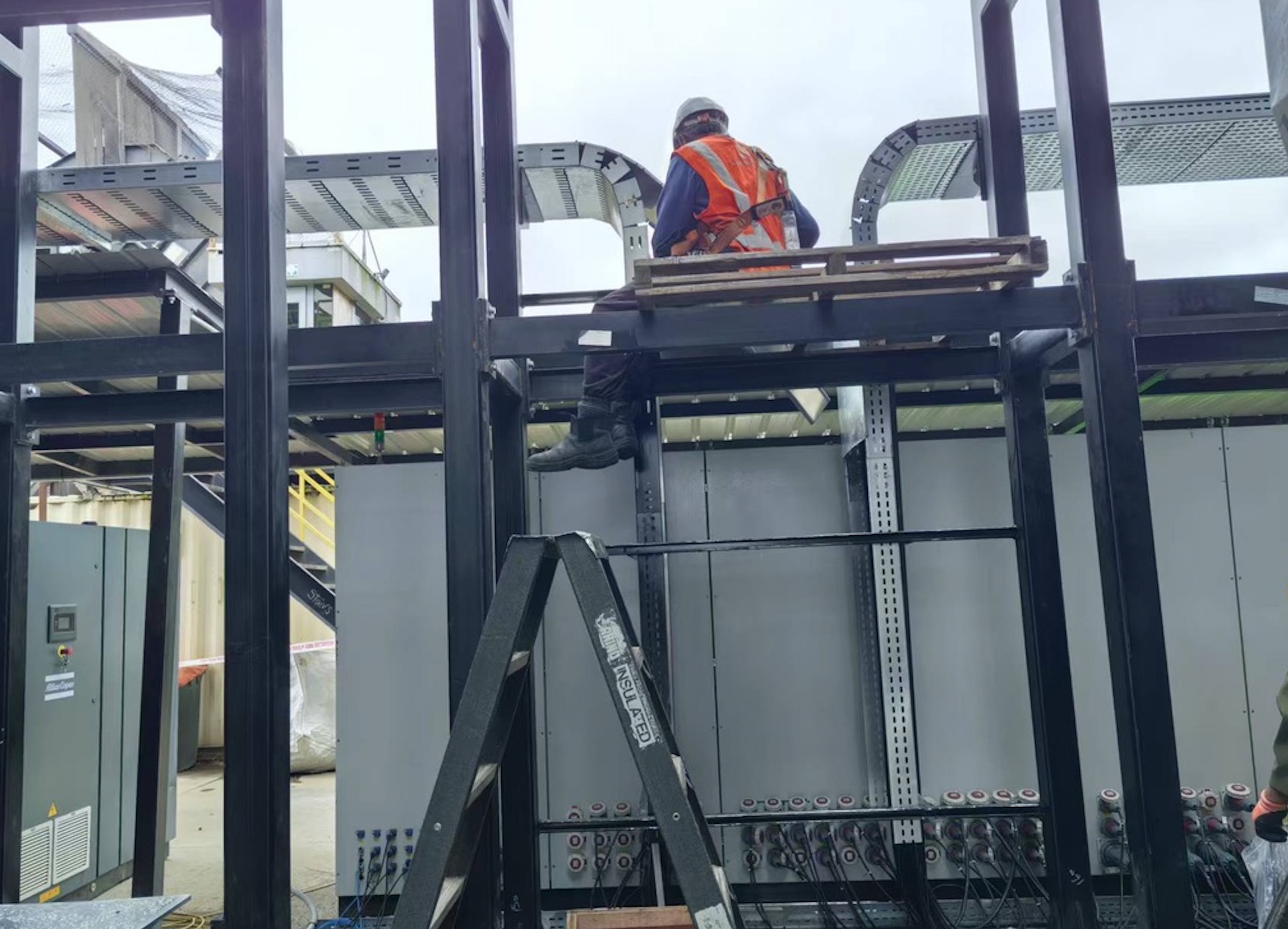

10) Cabling system
