1. Basic informations:

1) Feeding material information:

   a. Engine shell

   b. Capacity: 5-10 TPH

   c. Status: loose

2) Land information:

   L*W*H (around 100-150m*20-30m*8-12m)

   With roof

3) Power requirement

    Shredding system around 300 kW

    Sorting system around 200 kW

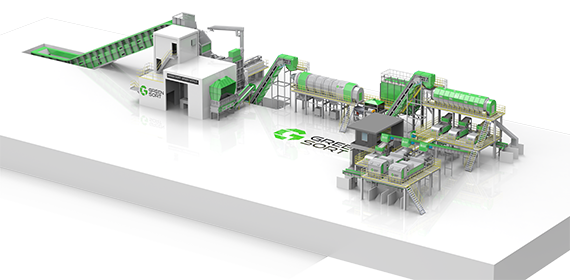

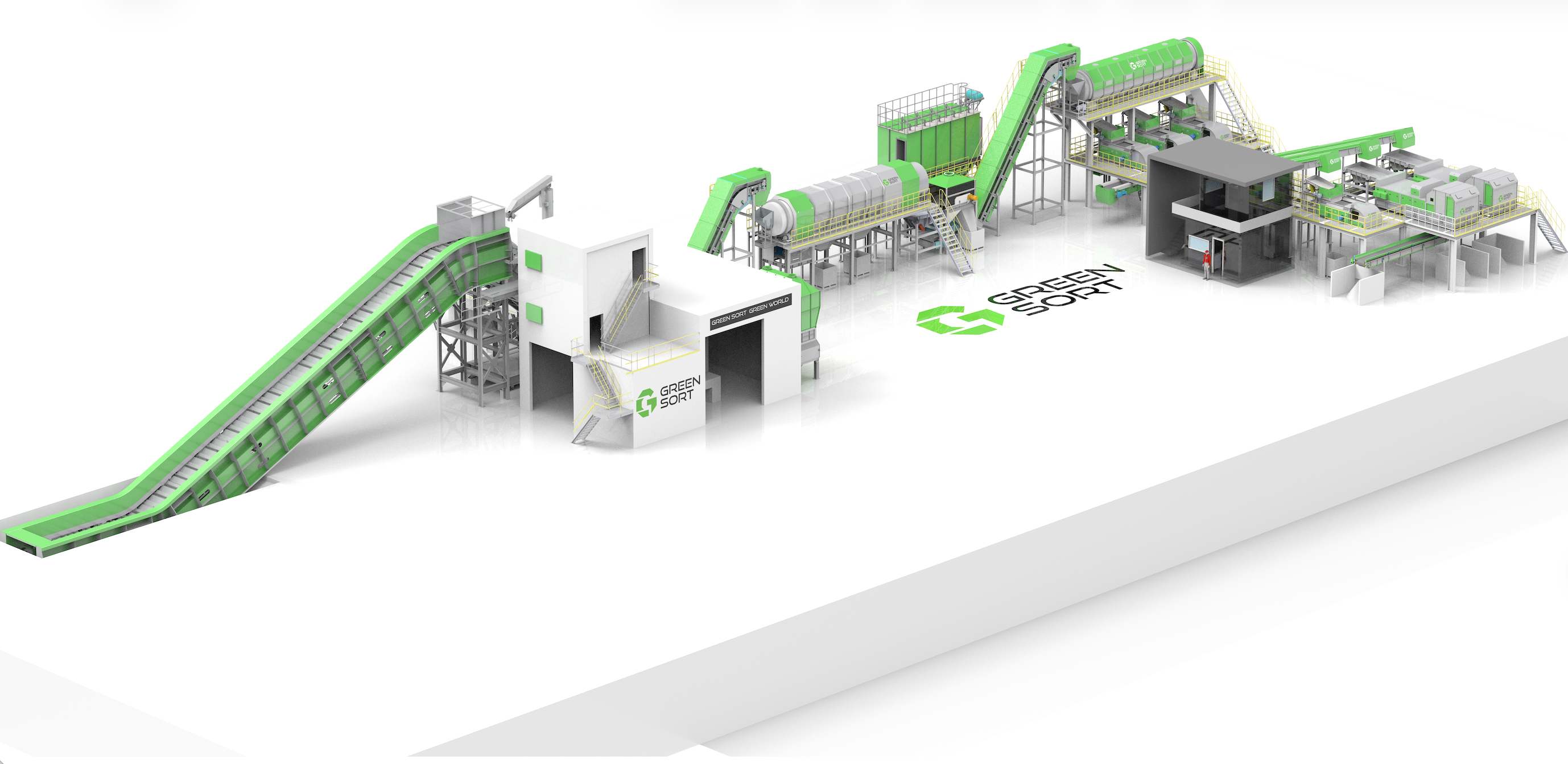

4) Main Equipment and its function

    Hammer mill shredder(size reduction)

    Polishing drum(brighten the aluminium shell and remove powder)

    Drum magnetic separator(remove ferrous metal)

   Trommel screen(feeding material classified into 3 fractions per size)

   Eddy current separator(recovery Aluminium and remove contaminations like     plastic, and rubber.)

   X ray sorter(remove heavy metals and get clean Aluminium)

5) Special design

    Whole plant with CE certificate

    Hammer mill sound proof to reduce noisy

    De-dusting system to keep the plant less dust pollution

    Two stages Eddy current separator to get high non-ferrous metal recovery

    Tower design to save the land cost
